HDPE Pipes & Coils

IS: 4984-2016 & IS: 14333-1

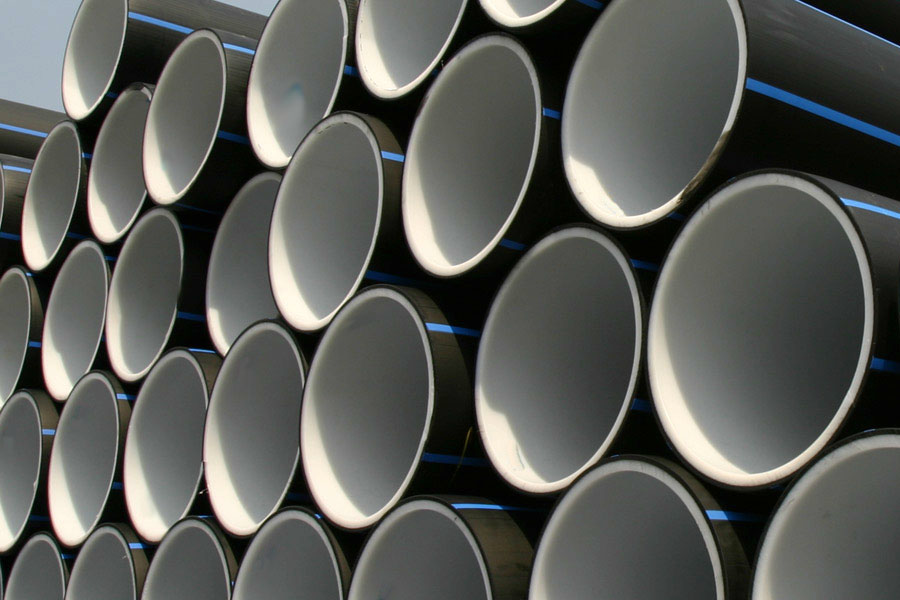

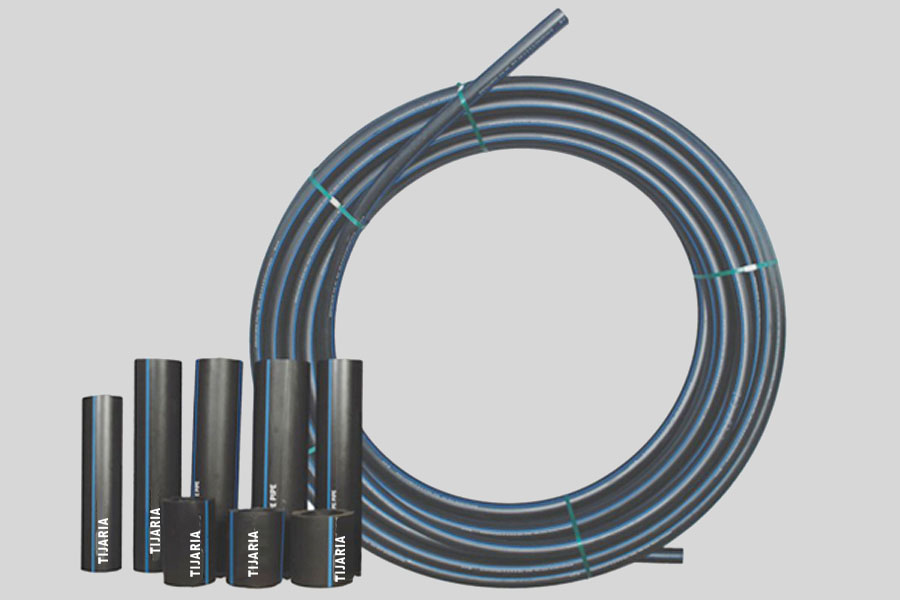

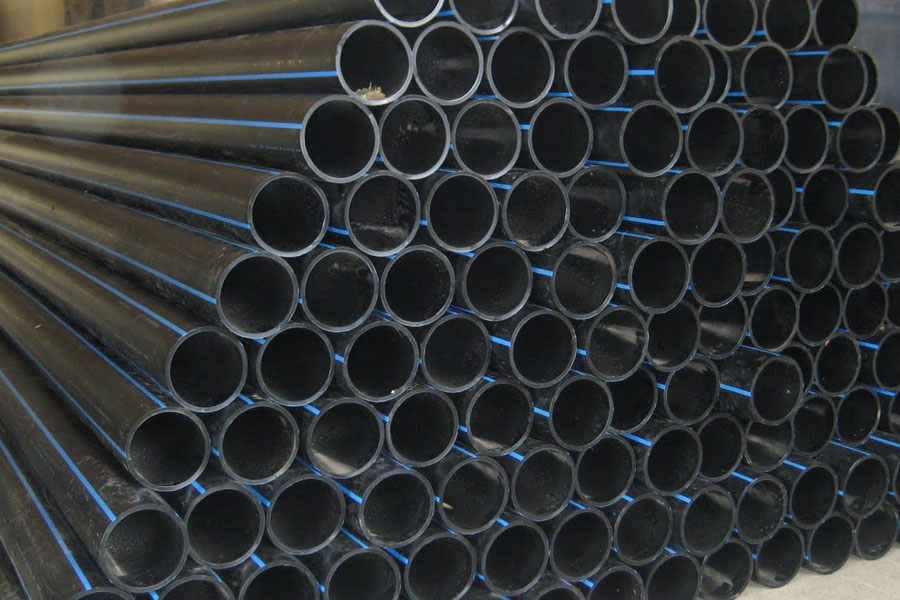

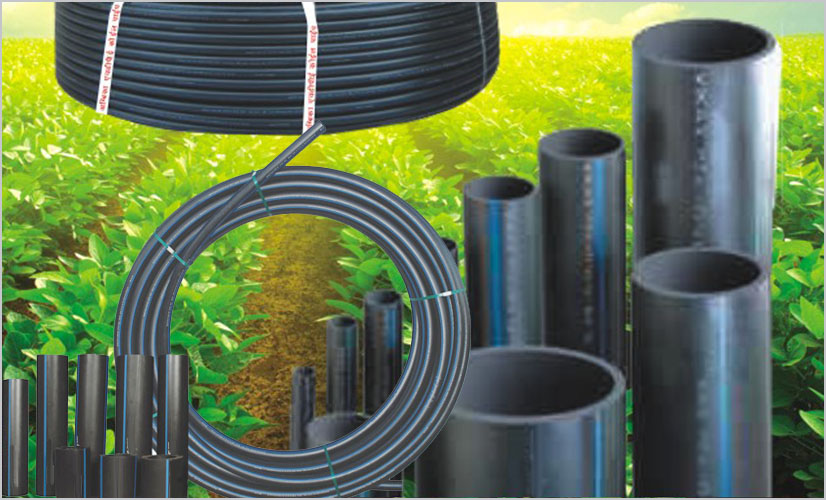

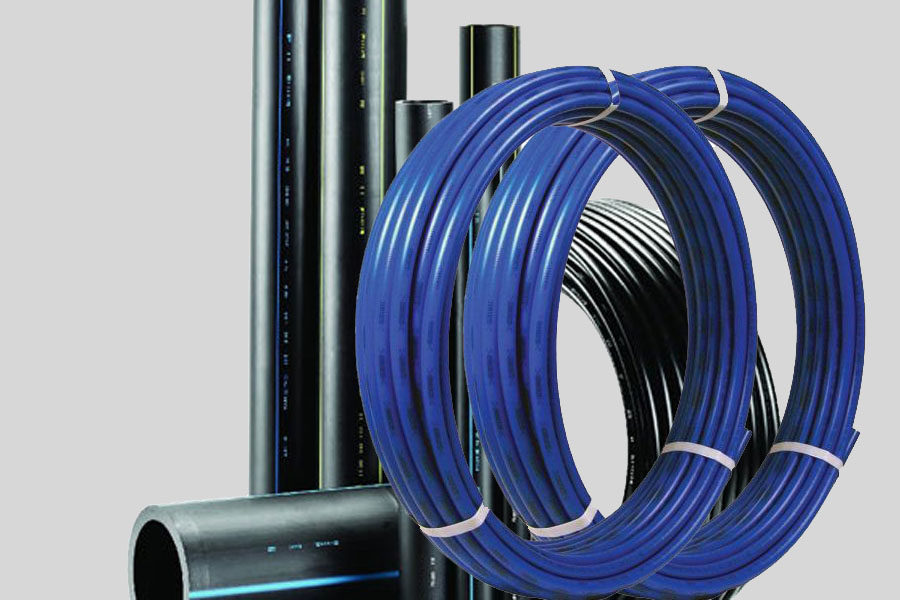

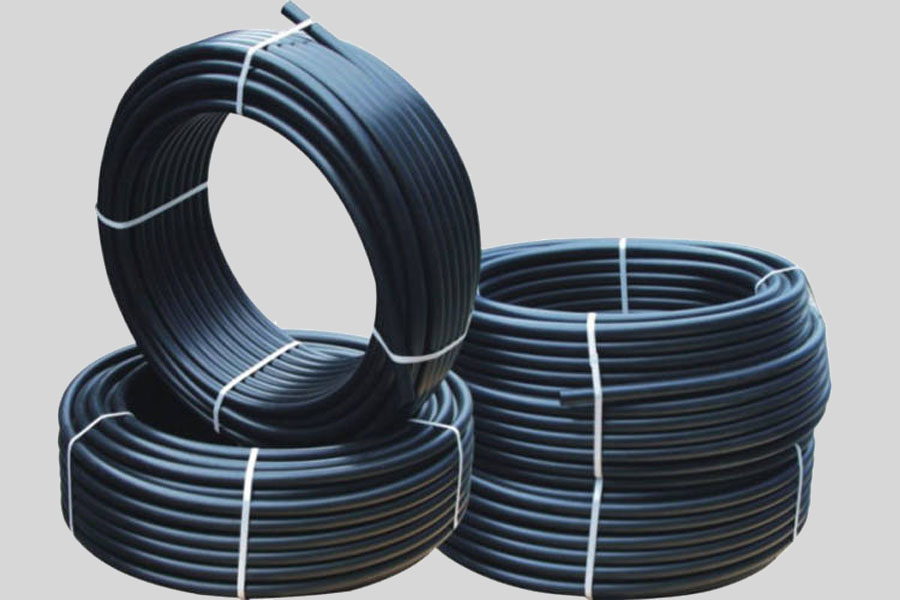

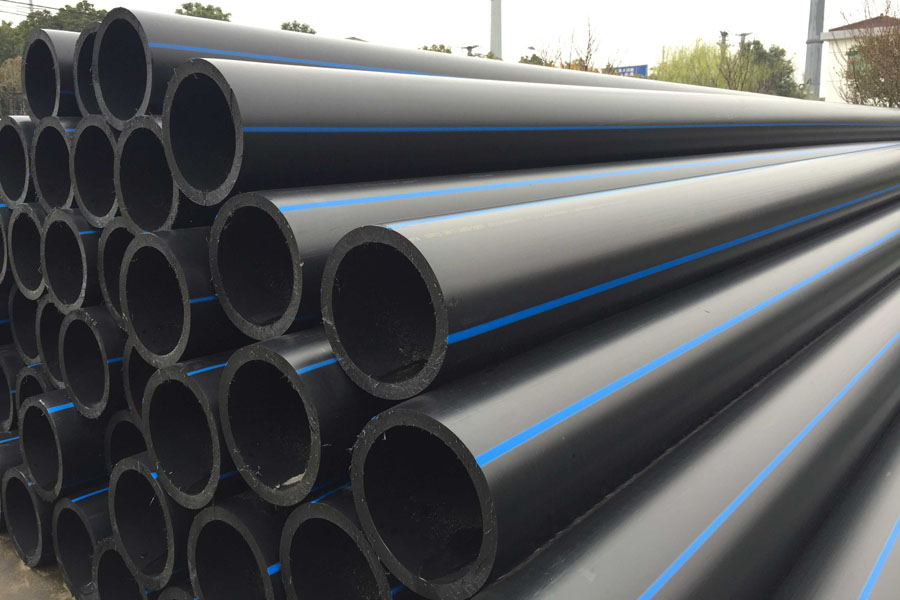

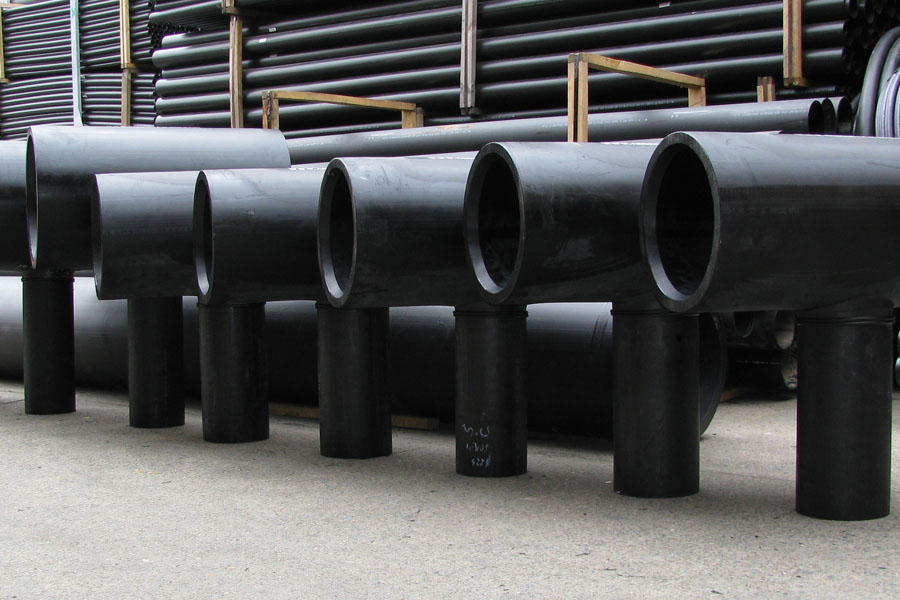

HDPE Pipes & Coils

MATERIALS : It is made of either of three grades of High Density Poly Ethylene polymers. i.e PE-63, PE-80 or PE-100

PRODUCT RANGE : These HDPE pipes are available in sizes 20 mm to 500 mm in pressure rating of PN-2.5, PN-4.0, PN-6.0, PN-8.0, PN-10.0 , PN-12.5 & PN-16.0 in all three grades PE-63, PE-80 and PE-100.

APPLICATIONS : Effluent and Waste Water Disposal: Effluents of varied chemical compositions can be effectively disposed of using Tijaria / Vikas HDPE pipes & coils, with the aid of the latest know-how on piping engineering, pipelines for waste collection and disposal in chemical industry. Longevity of Tijaria / Vikas pipes under such application would rate the best amongst the conventional pipe even under critical service conditions.

Domestic Gas Distributions : Earlier, engineers always carried a psychological fear in using HDPE pipes rather plastic pipes for conveyance of inflammably gases. However experiments and extensive trials proved these fears totally wrong and have established excellence of performance of HDPE pipes for conveyance of all type of combustible gases. Experiments have also proved that the permeable losses are insignificant in regard to safety and environmental impact

Submarine Pipelines : One of the most important applications where all salient features of Tijaria / Vikas pipes prominently figure out is for under water pipelines. Tijaria / Vikas pipes have been successfully laid for under water river crossing, creek crossing, marine out-falls and for brine intake lines in the open sea. Hazardous chemical effluents and radio active wastes are being harmlessly disposed into deep sea through Tijaria / Vikas pipes with substantial cost savings. Schemes which would have been dropped due to economical un-viability have been made feasible with Tijaria / Vikas pipes.

PROPERTIES

  • Economical than traditional pipe material.
  • Resistance to chemicals- Exceptional resistance to all external and internal corrosion.
  • Resistant to electrolytic corrosion.
  • Will not rust or rot.
  • Very good thermal insulation due to low thermal conductivity.
  • Perfect stability of material obviates the risk of ageing.
  • Total neutrality to products conveyed.
  • Low maintenance cost.
  • Easy to install.
  • Longer life than G.I, M.S cement and other pipes.
  • Flame resistance classifying the material as self extinguishing according to test standard employed.
  • Welded joints speedup installation- Trench widths reduced which leads to saving in the cost of excavation and back filling.
  • Light weight - One sixth of the weight of steel. Low specific gravity giving an outstanding light weight product for easy transportation, handling, fitting etc.
  • Smooth bore provided less head loss. Flow resistance is approximately 30 % less than that of conventional pipes, permitting the use of a smaller bore pipe for a given rate of flow.
DIA pN 2.5 pn 4 pn 6 pn 8 pn 10 pn 12.5 pn 16
dn min max min max min max min max min max min max min max
20 - - - - - - - - 2.3 2.8 2.8 3.3 3.4 4
25 - - - - - - 2.3 2.8 2.8 3.3 3.4 4 4.2 4.9
32 - - - - 2.3 2.8 3 3.5 3.6 4.2 4.4 5.1 5.4 6.2
40 - - 2 2.4 2.8 3.3 3.7 4.3 4.5 5.2 5.5 6.3 6.7 7.6
50 - - 2.4 2.9 3.5 4.1 4.6 5.3 5.6 6.4 6.8 7.7 8.4 9.5
63 2 2.4 3 3.5 4.4 5.1 5.8 6.6 7 7.9 8.6 9.7 10.5 11.8
75 2.3 2.8 3.6 4.2 5.3 6.1 6.9 7.8 8.4 9.5 10.2 11.5 12.5 14
90 2.8 3.3 4.3 5 6.3 7.2 8.2 9.3 10 11.2 12.2 13.7 15 16.7
110 3.4 4 5.3 6.1 7.7 8.7 10 11.2 12.3 13.8 14.9 16.6 18.4 20.5
125 3.8 4.4 6 6.8 8.8 9.9 11.4 12.8 13.9 15.5 16.9 18.8 20.9 23.2
140 4.3 5 6.7 7.8 9.8 11 12.8 14.3 15.6 17.4 19 21.1 23.4 26
160 4.9 5.6 7.7 8.7 11.2 12.6 14.6 16.3 17.8 19.8 21.7 24.1 26.7 29.6
180 5.5 6.3 8.6 9.7 12.6 14.1 16.4 18.3 20 22.2 24.4 27.1 30 33.2
200 6.1 7 9.6 10.8 14 15.6 18.2 20.3 22.3 24.8 27.1 30.1 33.4 37
225 6.9 7.8 10.8 12.1 15.7 17.5 20.5 22.8 25 27.7 30.5 33.8 37.5 41.5
250 7.6 8.6 12 13.4 17.5 19.5 22.8 25.3 27.8 30.8 33.8 37.4 41.7 46.1
280 8.5 9.6 13.4 15 19.6 21.8 25.5 28.3 31.2 34.6 37.9 41.9 46.7 51.6
315 9.6 10.8 15 16.7 22 24.4 28.7 31.8 35 38.7 42.6 47.1 52.5 58
355 10.8 12.1 17 18.9 24.8 27.9 32.3 35.8 39.5 43.7 48 53 59.2 65.4
400 12.2 14.3 19.1 22.2 28 32.4 36.4 42.1 44.5 51.4 54.1 62.6 - -

Last Update: Jan, 2011

DIA pN 2.5 pn 4 pn 6 pn 8 pn 10 pn 12.5 pn 16
dn min max min max min max min max min max min max min max
20 - - - - - - - - - - 2.3 2.8 2.8 3.3
25 - - - - - - - - 2.3 2.8 2.8 3.3 3.5 4.1
32 - - - - - - 2.4 2.9 3 3.5 3.6 4.2 4.5 5.2
40 - - - - 2.3 2.8 3 3.5 3.7 4.3 4.5 5.2 5.6 6.4
50 - - 2.3 2.8 2.9 3.4 3.8 4.4 4.6 5.3 5.6 6.4 6.9 7.8
63 - - 2.5 3 3.6 4.2 4.7 5.4 5.8 6.6 7 7.9 8.7 9.8
75 - - 2.9 3.4 4.3 5 5.6 6.4 6.9 7.8 8.4 9.5 10.4 11.7
90 2.3 2.8 3.5 4.1 5.1 5.9 6.7 7.6 8.2 9.3 10 11.2 12.5 14
110 2.7 3.2 4.3 5 6.3 7.2 8.2 9.3 10 11.2 12.3 13.8 15.2 17
125 3.1 3.7 4.9 5.6 7.1 8.1 9.3 10.5 11.4 12.8 13.9 15.5 17.3 19.3
140 3.5 4.1 5.4 6.2 8 9 10.4 11.7 12.8 14.3 15.6 17.4 19.4 21.6
160 4 4.6 6.2 7.1 9.1 10.3 11.9 13.3 14.6 16.3 17.8 19.8 22.1 24.6
180 4.4 5.1 7 7.9 10.2 11.5 13.4 15 16.4 18.3 20 22.2 24.9 27.6
200 4.9 5.6 7.7 8.7 11.4 12.8 14.9 16.6 18.2 20.3 22.3 24.8 27.6 30.6
225 5.5 6.3 8.7 9.8 12.8 14.3 16.7 18.6 20.5 22.8 25 27.7 31.1 34.5
250 6.1 7 9.7 10.9 14.2 15.9 18.6 20.7 22.8 25.3 27.8 30.8 34.5 38.2
280 6.9 7.8 10.8 12.1 15.9 17.7 20.8 23.1 25.5 28.3 31.2 34.6 38.7 42.8
315 7.7 8.7 12.2 13.7 17.9 19.9 23.4 26 28.7 31.8 35 38.7 43.5 48.1
355 8.7 9.8 13.7 15.3 20.1 22.4 26.3 29.2 32.3 35.8 39.5 43.7 49 54.1
400 9.8 11.5 15.4 18 22.7 26.4 29.7 34.4 36.4 42.1 44.5 51.4 55.2 63.7

Last Update: Jan, 2011

DIA pn 6 pn 8 pn 10 pn 12.5 pn 16
dn min max min max min max min max min max
20 - - - - - - - - 2.3 2.8
25 - - - - - - 2.3 2.8 2.9 3.4
32 - - - - 2.4 2.9 2.9 3.4 3.7 4.3
40 - - 2.4 2.9 3 3.5 3.7 4.3 4.6 5.3
50 2.3 2.8 3 3.5 3.7 4.3 4.6 5.3 5.7 6.5
63 2.9 3.4 3.8 4.4 4.7 5.4 5.7 6.5 7.1 8.8
75 3.5 4.1 4.5 5.2 5.6 6.4 6.8 7.7 8.5 9.6
90 4.1 4.8 5.4 6.2 6.7 7.6 8.2 9.3 10.2 11.5
110 5 5.7 6.6 7.5 8.1 9.2 10 11.2 12.4 13.9
125 5.7 6.5 7.5 8.5 9.2 10.4 11.3 12.7 14.1 15.8
140 6.4 7.3 8.4 9.5 10.3 11.6 12.7 14.2 15.8 17.6
160 7.3 8.3 9.6 10.8 11.8 13.2 14.5 16.2 18.1 20.2
180 8.2 9.3 10.8 12.1 13.3 14.9 16.3 18.2 20.3 22.6
200 9.1 10.3 12 13.4 14.8 16.5 18.1 20.2 22.6 25.8
225 10.3 11.6 13.5 15.1 16.6 18.5 20.4 22.7 25.4 28.2
250 11.4 12.8 15 16.7 18.4 20.5 22.6 25.1 28.2 31.3
280 12.8 14.3 16.8 18.7 20.6 22.9 25.3 28.1 31.6 35
315 14.4 16.1 18.9 21 23.2 25.8 28.5 31.6 35.5 39.3
355 16.2 18.1 21.2 23.6 26.2 29.1 32.1 35.6 40 42.2
400 18.2 21.2 23 27.7 29.5 34.2 36.2 41.9 45.1 52.1

Last Update: Jan, 2011

DIA pn 6 pn 8 pn 10 pn 12.5 pn 16
dn min max min max min max min max min max
63 3.6 4.2 4.7 5.4 5.8 6.6 7 7.9 8.7 9.8
75 4.3 5 5.6 6.4 6.9 7.8 8.4 9.5 10.4 11.7
90 5.1 5.9 6.7 7.6 8.2 9.3 10 11.2 12.5 14
110 6.3 7.2 8.2 9.3 10.1 11.2 12.3 13.8 15.2 17
125 7.1 8.1 9.3 10.5 11.4 12.8 13.9 15.5 17.3 19.3
140 8 9 10.4 11.7 12.8 14.3 15.6 17.4 19.4 21.6
160 9.1 10.3 11.9 13.3 14.6 16.3 17.8 19.8 22.1 24.6
180 10.2 11.5 13.4 15 16.4 18.3 20 22.2 24.9 27.6
200 11.4 12.8 14.9 16.6 18.2 20.3 22.3 24.8 27.6 30.6
225 12.8 14.3 16.7 18.6 20.5 22.8 25 27.7 31.1 34.5
250 14.2 15.9 18.6 20.7 22.8 25.3 27.8 30.8 34.5 38.2
280 15.9 17.7 20.8 23.1 25.2 28.3 31.2 34.6 38.7 42.8
315 17.9 19.9 23.4 26 28.7 31.8 35 38.7 43.5 48.1
355 20.1 22.4 26.3 29.2 32.3 35.8 39.5 43.7 49 54.1
400 22.7 26.4 29.7 34.4 36.4 42.1 44.5 51.4 55.2 63.7

Last Update: Jan, 2011


RECOMMENDATIONS :

SR NO  DEPTH OF THE BORE  PRESSURE CLASS
1 Up to 55 Mtrs. 4.0 kg/cm2
2 Up to 90 Mtrs. 6.0 kg/cm2
3 Up to 140 Mtrs. 10.0 kg/cm2
4 Up to 170 Mtrs. 12.5 kg/cm2

RECOMMENDATIONS :

SR No PROPERTIES VALUE
1 M.F.I. (190°C, 5kg load) 0.20 to 1.1 gm/10 mins
2 Specified base density 940 to 958 kg/mtr3
3 Material Grade PE-63, PE-80, PE-100
4 Carbon Black (2.5 ± 0.5%)
5 Antioxidant <0.3% by mass
6 Tensile Strength (min) (27±2°C) 19MPa
7 Elongation (Testing speed = 100mm/min ± 10% ) >350%
8 Reversion <=3%
9 Hydraulic Characteristics No sign of localized swelling, leakage or weeping (at 80°C for 165 & 48 hrs.)
