MICRO / DRIP Irrigation System

IS 13488: 2008, IS 13487 : 1992 & IS 12786 : 1996

MICRO / DRIP Irrigation System

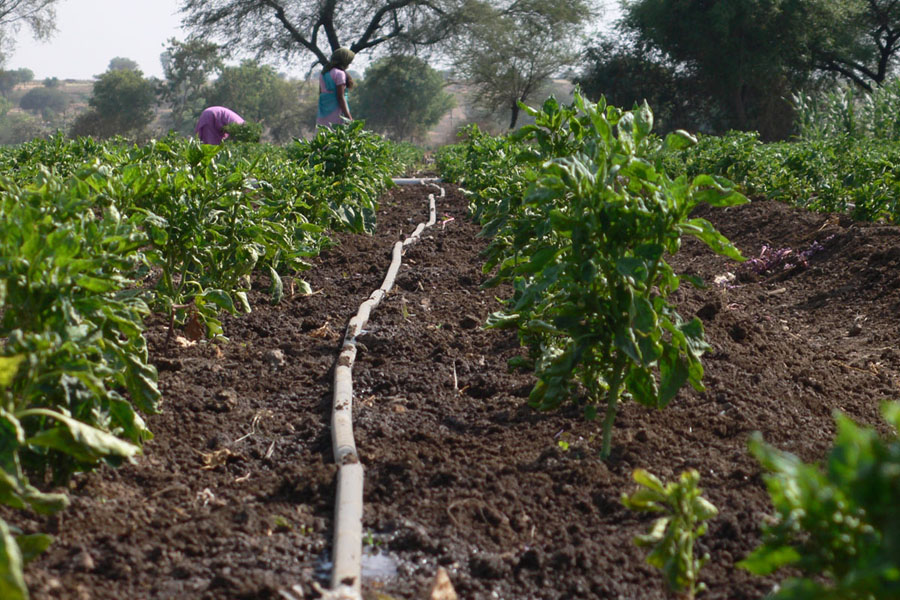

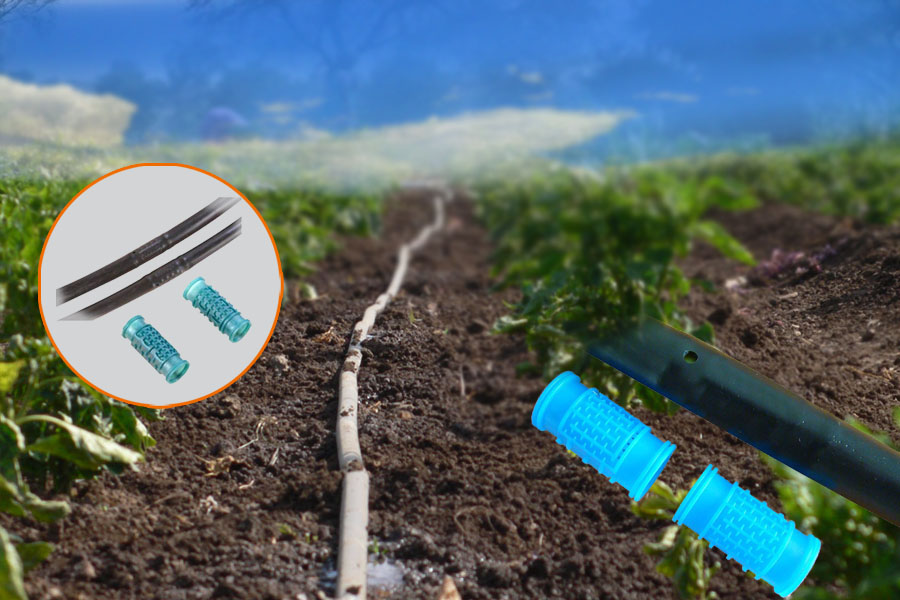

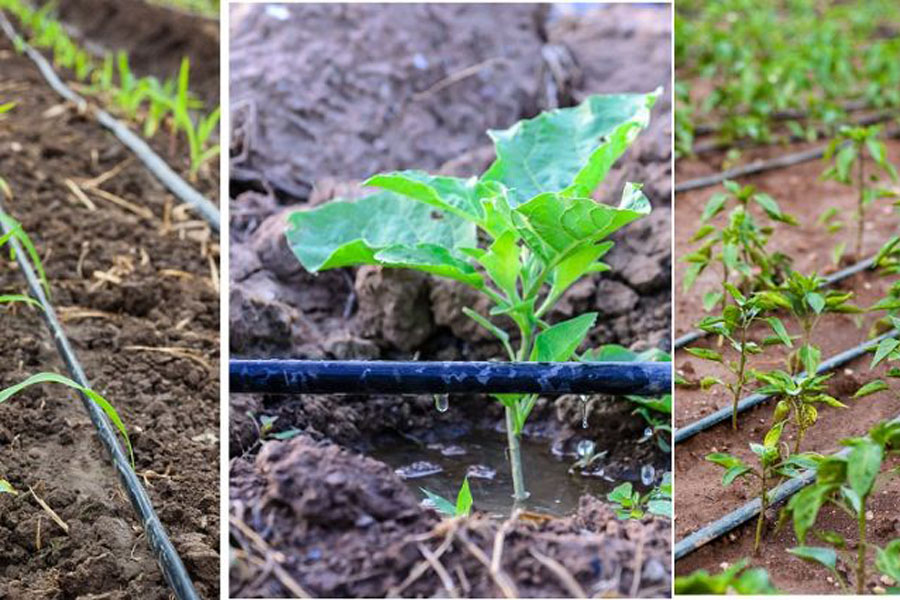

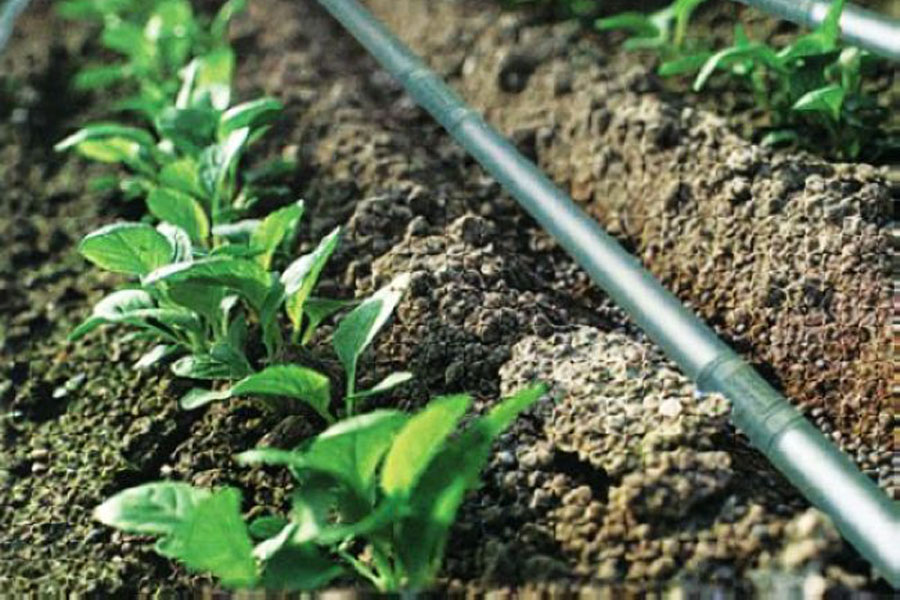

MICRO / DRIP Irrigation System Tijaria Polypipes Ltd. introduces inline emitting pipe system for better irrigation of plants at very low cost and with scarce of water. This product confirms to Indian Standards as per IS:13488 & IS:12786. This is an integral pipe system (in-built) in which the emitters are inserted in the laterals during the extrusion process at preset distances.

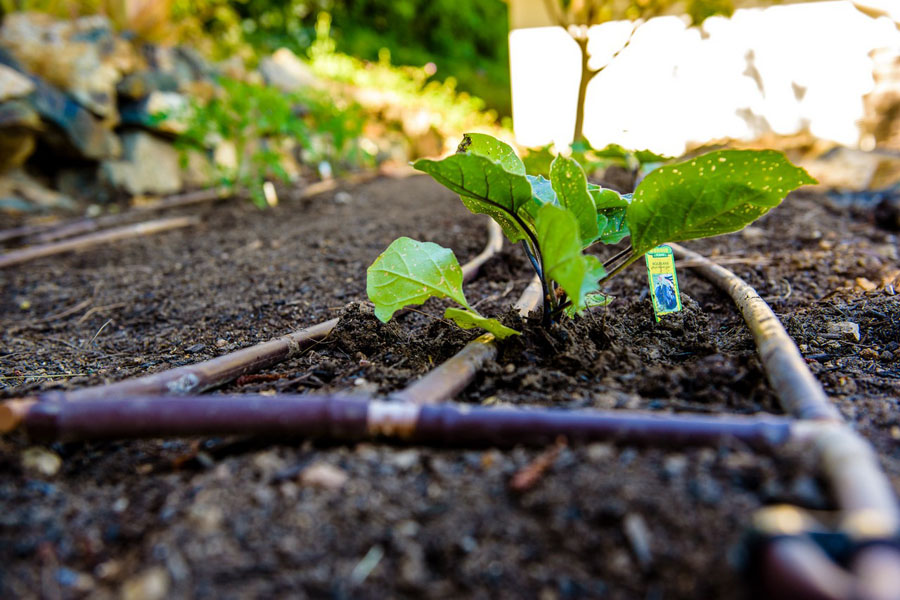

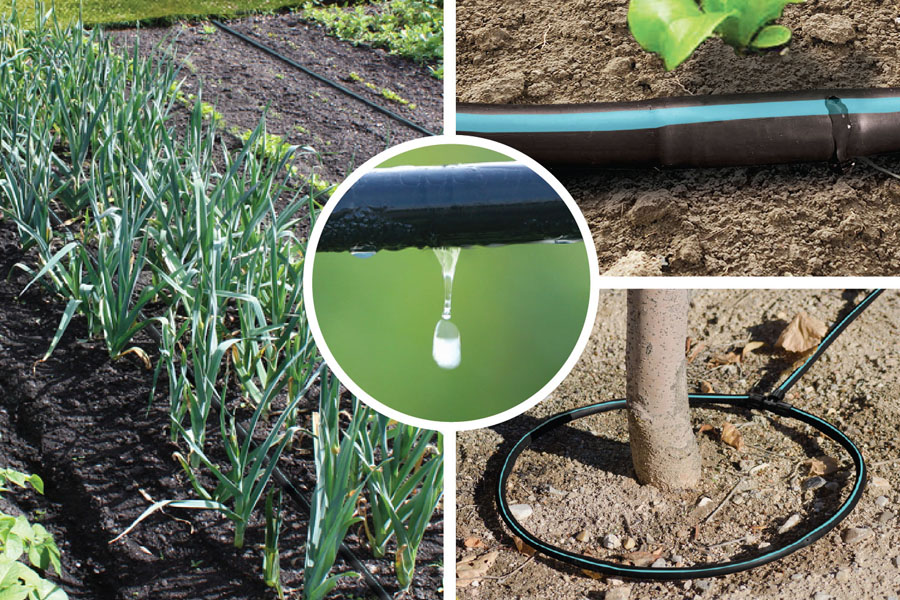

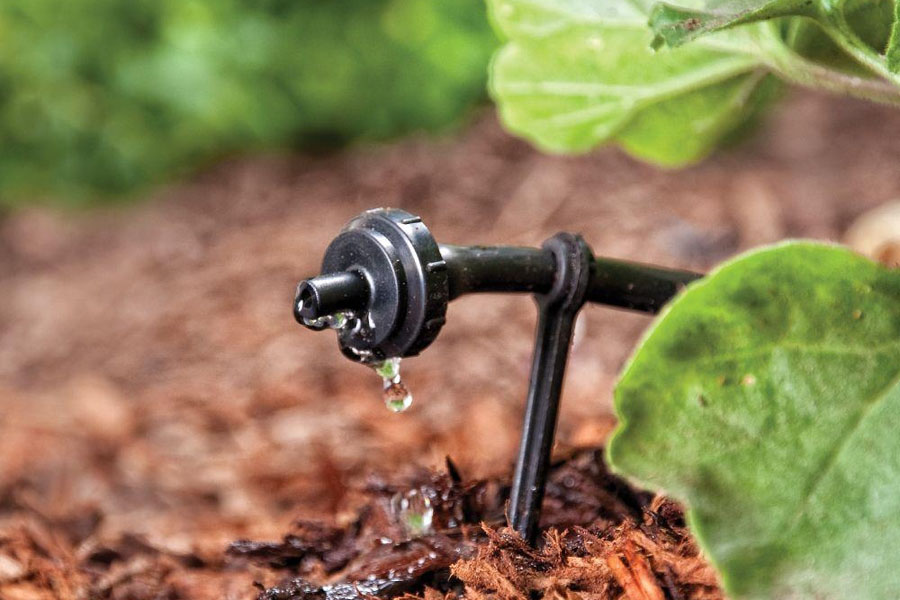

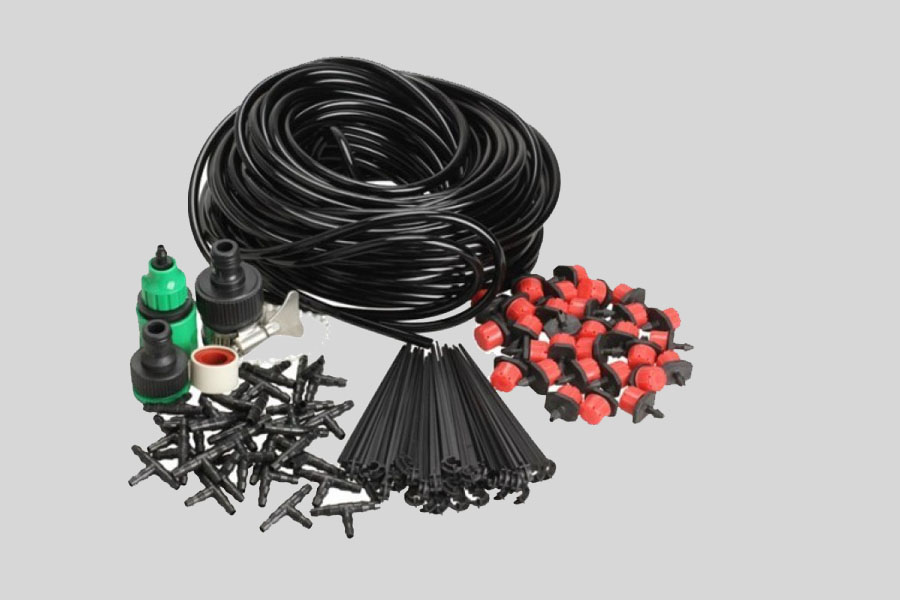

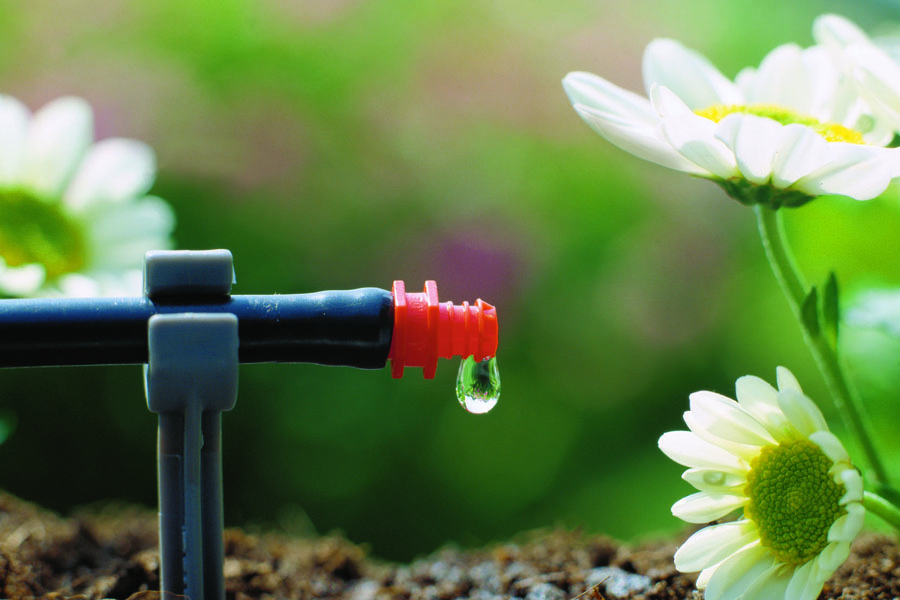

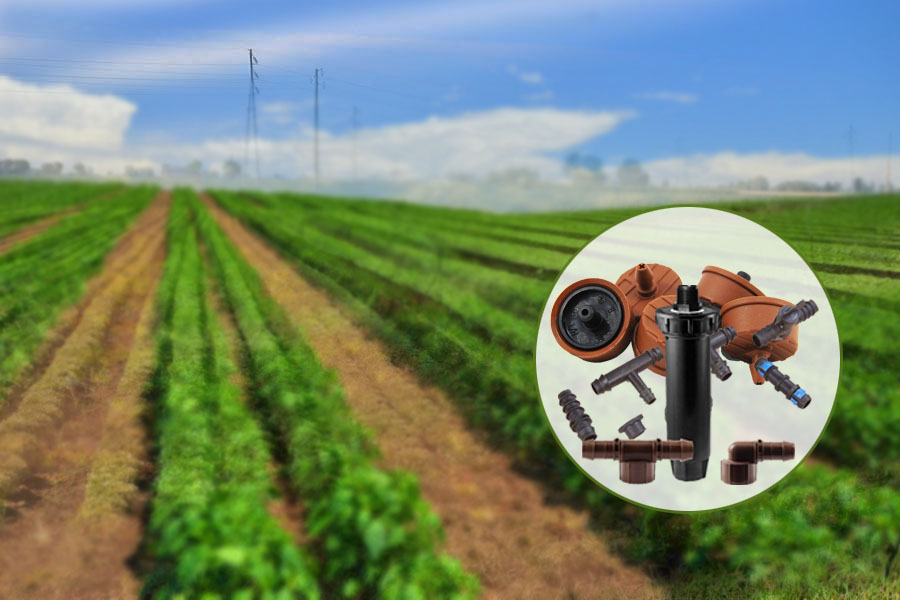

Micro irrigation, also called drip irrigation or low-volume irrigation, delivers water directly to the root zone of the plant. There are many parts to a typical drip system, but a Micro irrigation system offers users the most value, including better control and water savings.

SALIENT FEATURES :

  • High clog resistant emitter designed with a unique wide turbulent flow path.
  • Large surface inlet screen orifice.
  • Two orifice outlets placed 180° apart at each dripper end.
  • The additional outlet reduces the suction hazard from sand particles when the laterals are drained.
  • Easy to roll and unroll during inter cultivating operations, thus reduces chances of mechanical damage without losing drippers.
  • Uniform emission rate along the lateral.
  • Available in wide range of emitter spacing from 20 to 150 cm as per customer's need.

INSTALLATION :

  • Quick and easy to install: Just unroll and lay the lateral to the reduce time and cost.

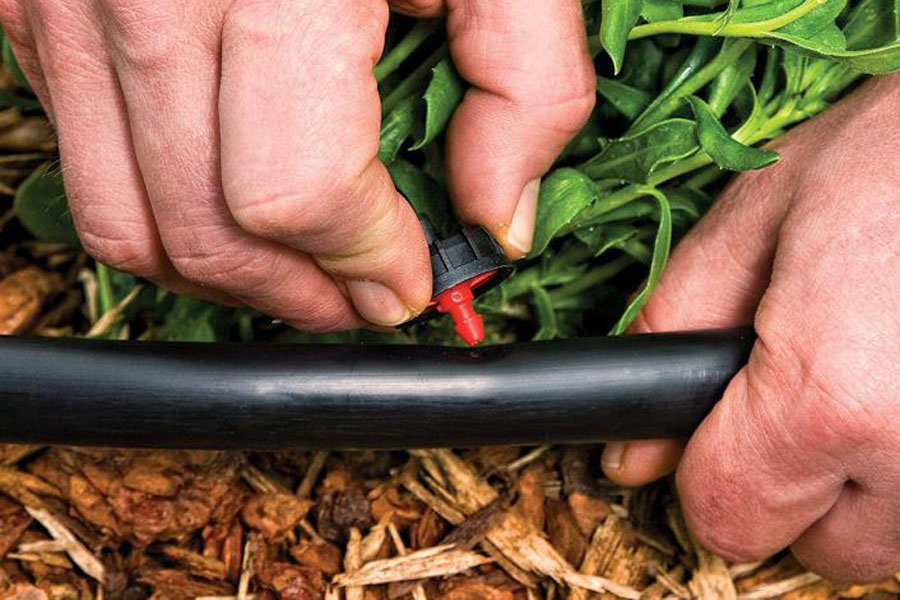

  • No need of punching the drippers on the lateral.
  • Can easily be connected to the PVC / HDPE pipe by means of head connector.

SPECIFICATIONS :

  • Manufactured in class 1,2,3,4 pressure ratings with different emission rates.

Operating Range :
Working pressure range: 0.7 kg/cm² to 2.25 kg/cm²

APPLICATION :
All field crops like sugarcane, cotton, strawberry, grapes, carnations, floriculture, banana, pineapple, vegetables, tea gardens, green houses etc.

DIAMETER (mm) CLASS PRESSURE RATING (KG/CM2) Average Wall thickness (mm)
12 3
3
2.5
4.0
1.1
1.2
16 1
2
3
1.0
1.25
2.5
0.8
0.9
1.3

Last Update: Jan, 2011

Maximum recommended drip line length in meters on flat terrain at a pressure of 1 kg / cm2 diameter 12 mm & 16 mm.

Dripper Spacing (MM)     20 30 40 50 60 75 90 100 150
Maximum Extendable Lateral Length 16 mm 2LPH 40 62 72 89 102 116 127 146 188
16 mm 4LPH 25 35 44 52 59 70 78 85 111
12 mm 2LPH 22 31 38 46 53 63 71 77 103

Last Update: Jan, 2011
