IS:15328-2003

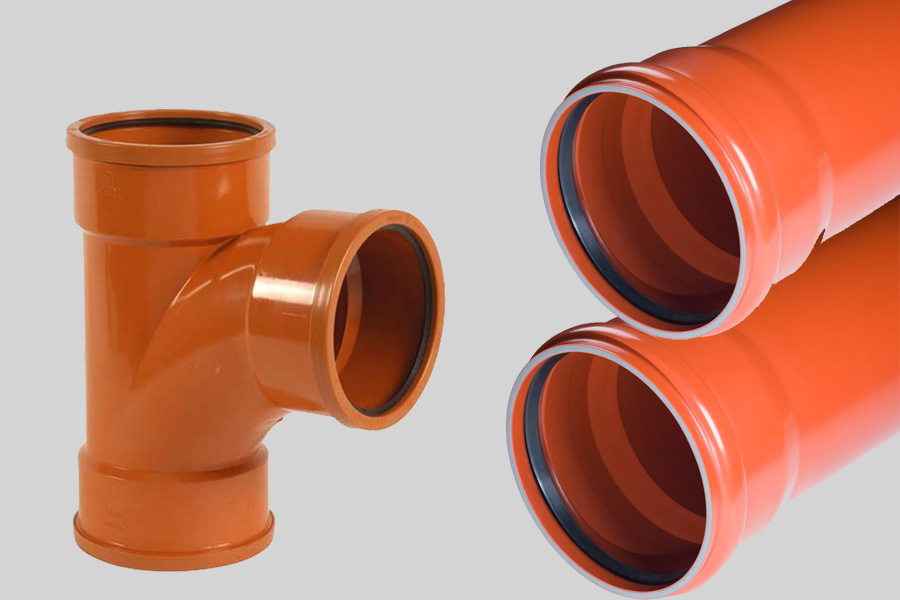

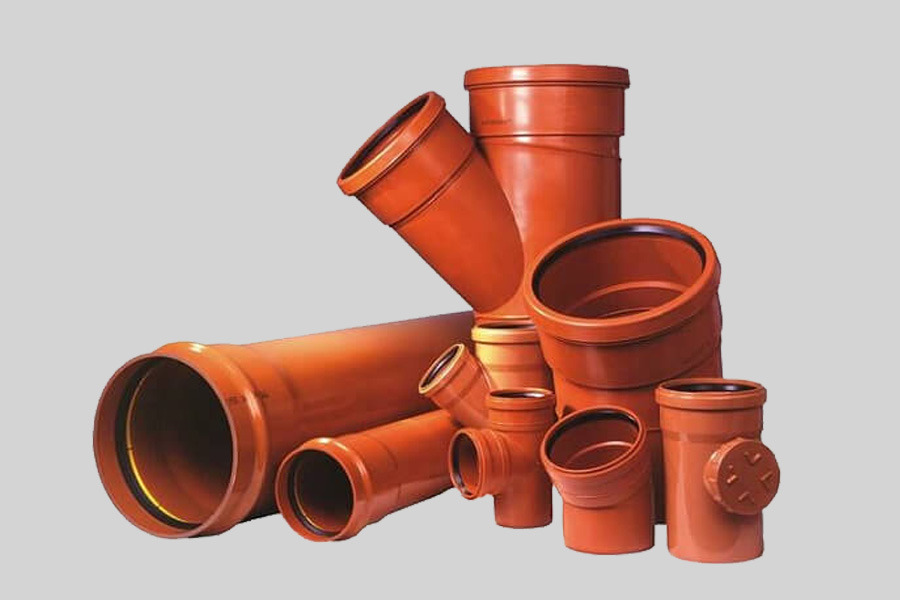

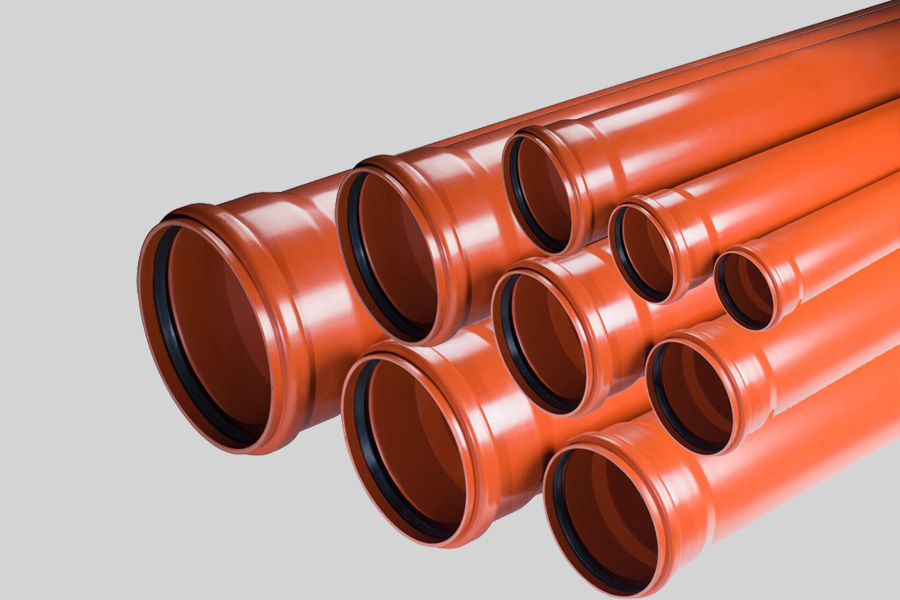

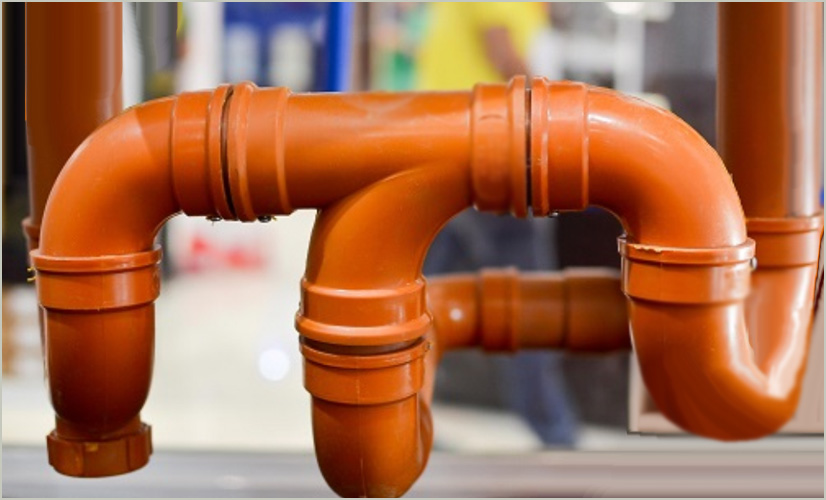

Tijaria manufactures unplasticised non- pressure Polyvinyl Chloride Pipes specifically to use in Underground Drainage & Sewerage Systems as per IS: 15328-2003 with latest amendments. These pipes are colour coded Brown (any shade of Brown) & are available in plain as well as elastomeric sealing ring type and either use solvent cement or slide fit respectively for installation.
APPLICATION :

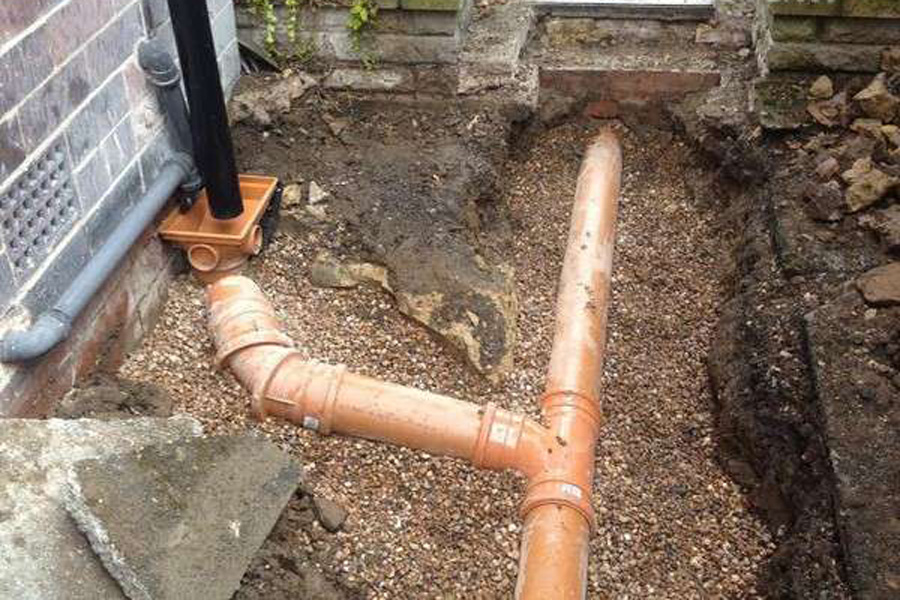

These pipes are designed to carry the soil & waste from the SWR Drainage Systems to appropriate drains or sewer through an underground network of pipes.
PRODUCT RANGE :
Tijaria/ Vikas Underground Drainage Pipes are available in sizes from 110mm to 400mm OD in pressure rating SN-2, SN-4 & SN-8.
SPECIFICATION :
Conforming to IS:15328-2003 with latest amendments with rubber ring joints as per ISO:4422 -1992 or DIN 8062 or IS:5382-1985 & with solvent cement joints as per IS:14182-1994.
Dimensions and Stiffness Class of U-Drain pipes as per - IS 15328-2003 with latest amendments.
| Nominal Ring Stiffness SN (KN/M2 ) | SN-2 | SN-4 | SN-8 |
| SDR | 51 | 41 | 34 |
| OD mm (D) | Wall thickness in mm (t) | ||
| 110 | - | - | 3.2+0.5 |
| 125 | - | 3.2+0.5 | 3.2+0.7 |
| 160 | 3.2+0.5 | 4.0+0.6 | 4.7+0.7 |
| 200 | 3.9+0.6 | 4.9+0.7 | 5.9+0.8 |
| 250 | 4.9+0.7 | 6.2+0.8 | 7.3+1.0 |
| 315 | 6.2+0.8 | 7.7+1.0 | 9.2+1.2 |
| 400 | 7.9+1.0 | 9.8+1.2 | 11.7+1.4 |
