uPVC Rigid Pipes & Blue Casing

IS:4985-2000 & IS: 12818-1992

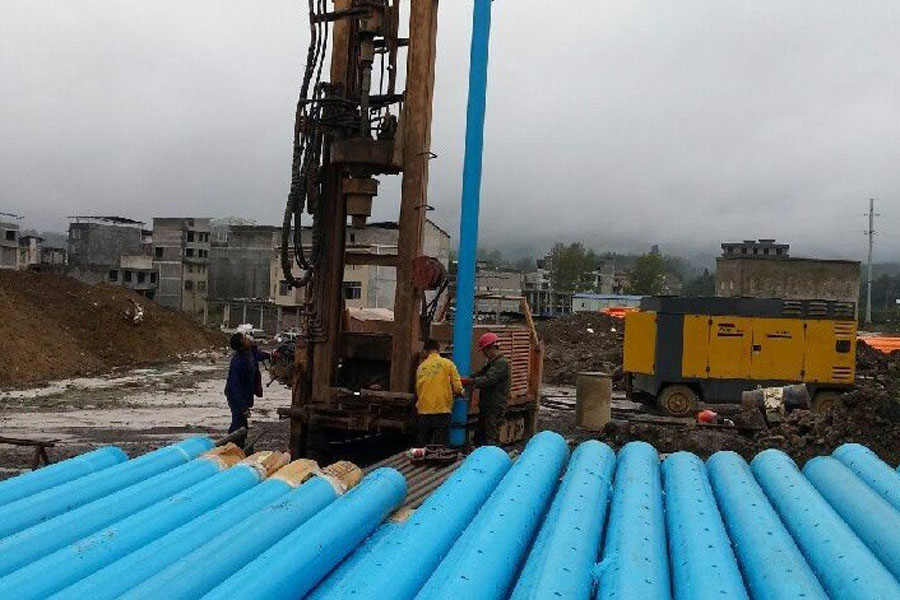

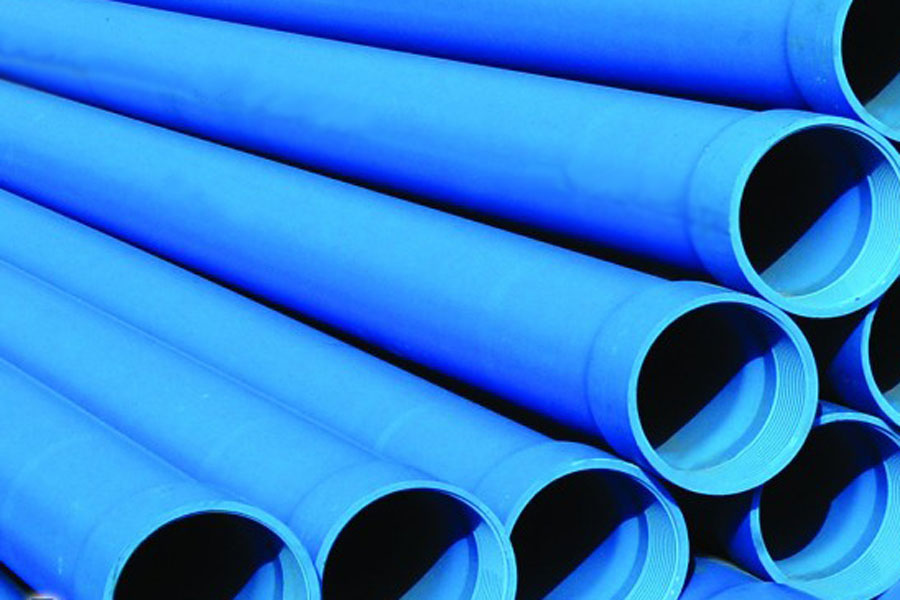

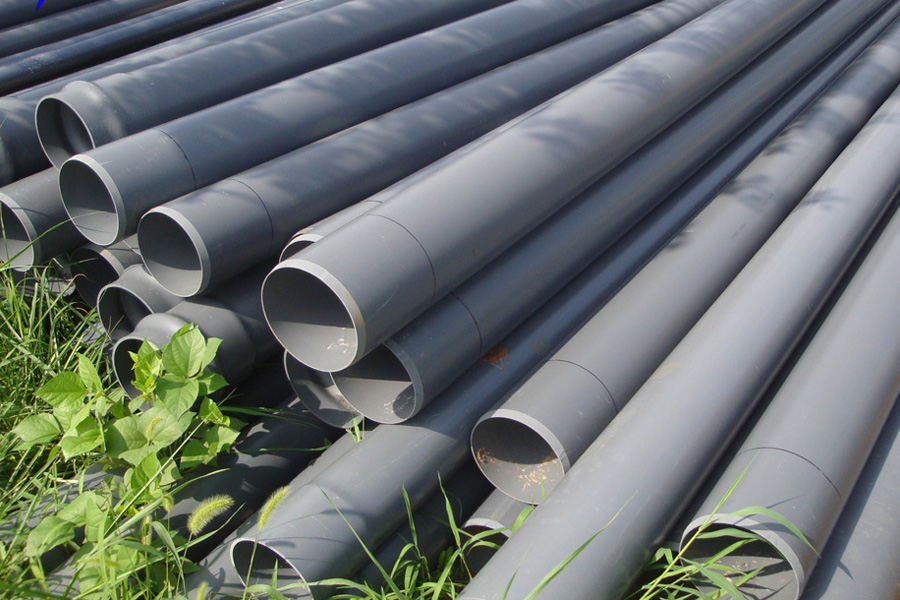

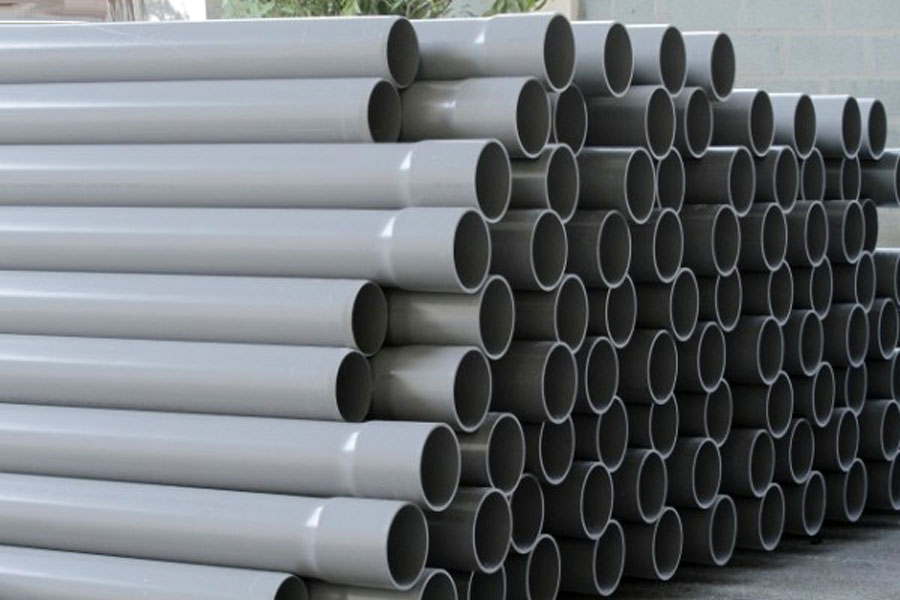

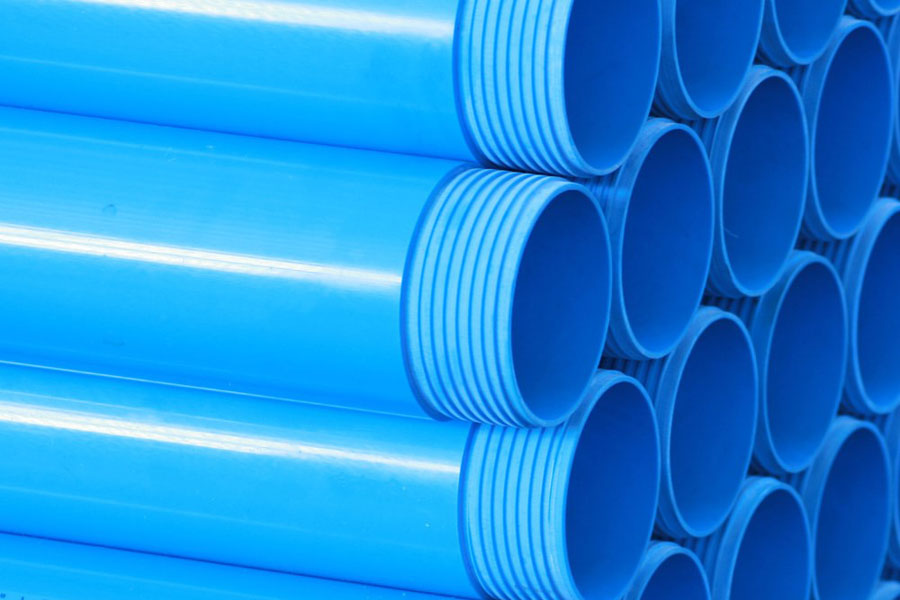

uPVC Rigid Pipes & Blue Casing

CONSTRUCTION :
It is made of Unplasticised Ploy Vinyl Chloride, Suspension grade, K value 65 - 67, a bulk polymer suitable for pressure pipes. uPVC has properties which allow it to be used as a replacement for and often advantage over traditional material such as Cast iron, Asbestos cement, Clay & wood.

PRODUCT RANGE :

  • Plain 20 mm to 315 mm.
  • Selfit 63 mm to 315 mm.

SALIENT FEATURES :

  • Strong and Durable
  • Light Weight
  • Length as required
  • Resistant to moisture, corrosion, chemicals, abrasion & wearing
  • Better flow characteristics
  • Leak Proof
  • Energy Saving
  • Safe
  • Convenient jointing
  • Termite proof and UV resistant
  • Longer lasting and maintenance free
  • Confirms to IS 4985 : 2000 in all respects.

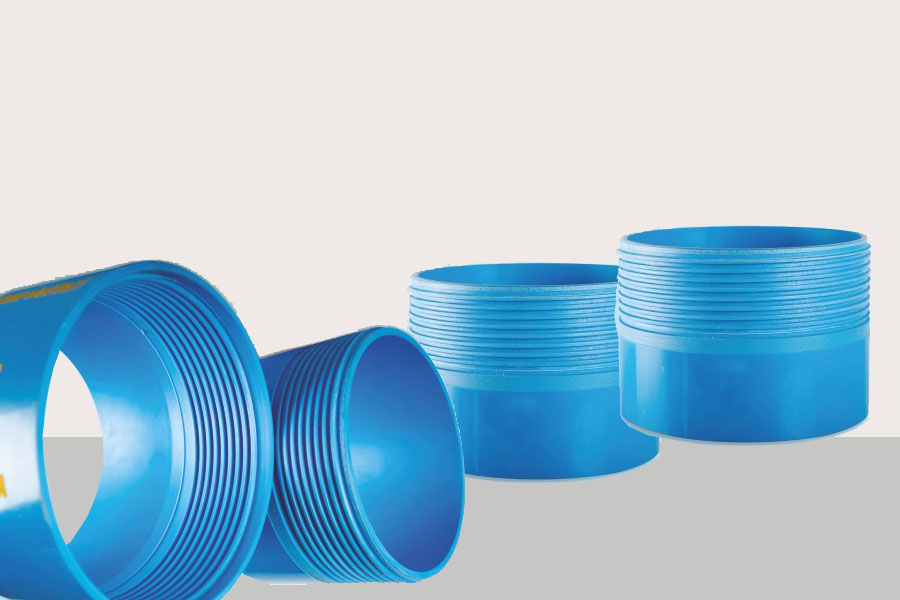

Fittings :
Bend, Tee, Elbow, Coupler MTA, FTA, Service suddle, Reducers, End Caps etc.

Applications :

Agriculture :

  • Irrigation schemes for agricultural purpose.

Domestic :

  • Portable water supply scheme in urban areas.

Industrial :

  • Disposal of chemical effuent and waste.
  • Salt water handling.

Other :

  • Can be used for Telecommunication cable ducting.
  • Bio-gas, natural gas distribution and oil distribution lines.
Normal mean outside Wall Thickness Socket Minimum
Outside outside dia diameter at class-1 Class-2 Class-3 Class-4 Class-5 Class-6 inner Depth of
dia dem any point de 0.25 mpa 0.40 mpa 0.60 mpa 0.80 mpa 1.00 mpa 1.25 mpa diameter engagement
dn dem de (2.5 kg/cm2) (4.0 kg/cm2) (6.0 kg/cm2) (8.0 kg/cm2) (10.0 kg/cm2) (12.5 kg/cm2) Dim m
  min max min max min max min max min max min max min max min max min max
63 63.0 63.3 62.2 63.8 - - 1.5 1.9 2.2 2.7 2.8 3.3 3.5 4.1 4.3 5.0 63.6 64.3 64
75 75.0 75.3 74.1 75.9 - - 1.8 2.2 2.6 3.1 3.4 4.0 4.2 4.9 5.1 5.9 75.6 76.3 67
90 90.0 90.3 88.9 91.1 1.3 1.7 2.1 2.6 3.1 3.7 4.0 4.6 5.0 5.7 6.1 7.1 90.7 91.5 70
110 110.0 110.4 108.6 111.4 1.6 2.0 2.5 3.0 3.7 4.3 4.9 5.6 6.1 7.1 7.5 8.7 110.8 111.7 75
125 125.0 125.4 123.5 126.5 1.8 2.2 2.9 3.4 4.3 5.0 5.6 6.4 6.9 8.0 8.5 9.8 125.9 126.9 78
140 140.0 140.5 138.3 141.7 2.0 2.4 3.2 3.8 4.8 5.5 6.3 7.3 7.7 8.9 9.5 11.0 140.9 141.9 81
160 160.0 160.5 158.0 162.0 2.3 2.8 3.7 4.3 5.4 6.2 7.2 8.3 8.8 10.2 10.9 12.6 161.0 162.1 86
180 180.0 180.6 177.8 182.2 2.6 3.1 4.2 4.9 6.1 7.1 8.0 9.2 9.9 11.4 12.2 14.1 181.1 182.2 90
200 200.0 200.6 197.6 202.4 2.9 3.4 4.6 5.3 6.8 7.9 8.9 10.3 11.0 12.7 13.6 15.7 201.2 202.3 94
225 225.0 225.7 222.3 227.7 3.3 3.9 5.2 6.0 7.6 8.8 10.0 11.5 12.4 14.3 15.3 17.6 226.4 227.5 100
250 250.0 250.8 247.0 253.0 3.6 4.2 5.7 6.5 8.5 9.8 11.2 12.9 13.8 15.9 17.0 19.6 251.5 252.6 105
280 280.0 280.9 276.6 283.4 4.1 4.8 6.4 7.4 9.5 11.0 12.5 14.4 15.4 17.8 19.0 21.9 281.6 283.0 112
315 315.0 316.0 311.2 318.8 4.6 5.3 7.2 8.3 10.7 12.4 14.0 16.1 17.3 19.9 21.4 24.7 316.8 318.3 118

Last Update: Jan, 2011

PROPERTIES :

Sr No:

 General Properties :

 Value

1. Specific Gravity (g/mm2) 1.4
2. Capacity (%) less than 0.2
3. Water absorption (mg / cm2) <4

Sr No:

 Mechanical Properties :

 Value

1. Tensile Strength (MPa) >45
2. Compressive Strength (Kg / cm2) 704 - 775
3. Flexural Yield Strength (kg / cm2) 563 - 1057
4. Creep Pressure (N / mm2) 10
5. Izod Impact Strength (Notch) (KJ / m2) 3 - 5
6. Durometer Hardness (shore) 80 - 90
7. Surface Resistance > 10
8. Density (gm / cc) 1.4 - 1.45

Sr No:

 Electrical Properties :

 Value

1. Dielectric constant (60 Hz) 3.4
2. Dielectric Strength (Kv / Mv) 17

Sr No:

 Thermal Properties :

 Value

1. Coefficient of Thermal conductivity
(CAL / cm2 / °C / cm104 )
3-5
2. Coefficient of linear expansion
(mm / °C / cm104)
9-18
3. Deflection Temperature 63-82
4. Specific Heat (CAL / °C / g) 0.25 - 0.35
5. Burn Rate Self Extinguishing
